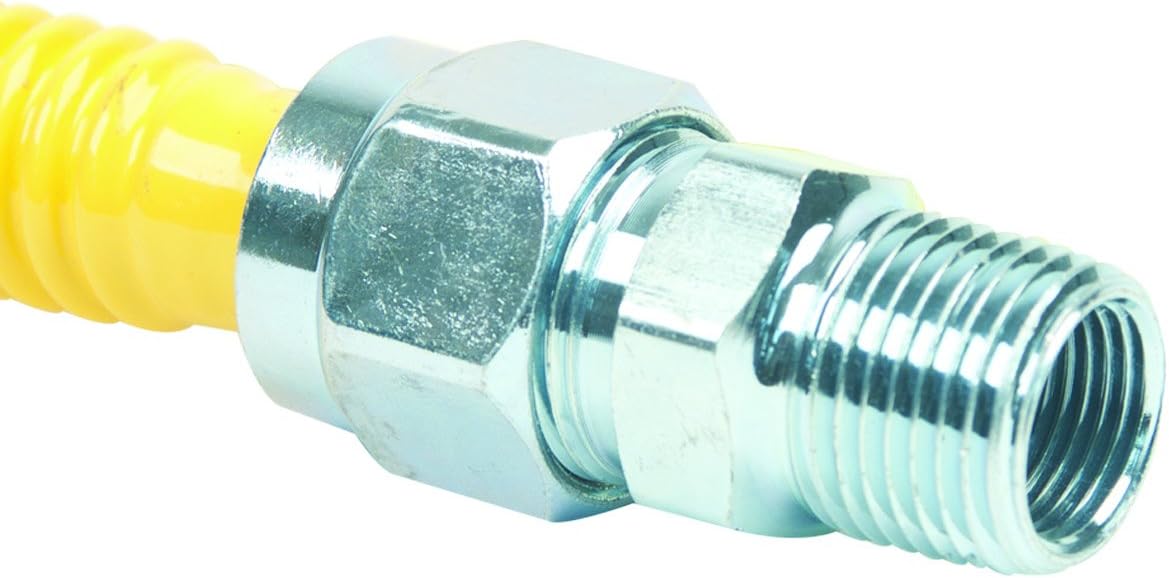

BrassCraft CSSC44E-24 P 1/2-Inch MIP EFV x 1/2-Inch MIP x 24-Inch Safety+PLUS Gas Appliance Connector, 5/8-Inch, OD 150,000 BTU

Product Description Brass Craft's 1/2 In. MIP EFV x 1/2 In. MIP x 24 In. Safety+PLUS Gas Appliance Connector is 5/8 In. OD (1/2 In. ID) with a maximum operating capacity of 150,000 BTU's. This Safety+PLUS gas connector combines excess flow technology with the advanced corrosion resistance of Recoat, to provide a safer gas connector for home and family. In the event of a gas line rupture or disconnect, the Safety+PLUS valve restricts gas flow at the appliance to a non-hazardous level. This immediate action helps avert the potential for a dangerous release of gas into the home. Our stainless steel gas connector is protected with a proprietary polymer coating designed to withstand prolonged exposure to harsh household cleaning, plumbing repair and masonry products. Recoat coating is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the Recoat coating is baked directly on the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available. From the Manufacturer BrassCraft's 1/2 In. MIP EFV x 1/2 In. MIP x 24 In. Safety+PLUS Gas Appliance Connector is 5/8 In. OD (1/2 In. ID) with a maximum operating capacity of 150,000 BTU's. This Safety+PLUS gas connector combines excess flow technology with the advanced corrosion resistance of ProCoat, to provide a safer gas connector for home and family. In the event of a gas line rupture or disconnect, the Safety+PLUS valve restricts gas flow at the appliance to a non-hazardous level. This immediate action helps avert the potential for a dangerous release of gas into the home. Our stainless steel gas connector is protected with a proprietary polymer coating designed to withstand prolonged exposure to harsh household cleaning, plumbing repair and masonry products. ProCoat coating is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly on the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available.

• 5/8 In. OD with 15/16-16 Thread x 24 In. stainless steel connector w/corrosion resistant coating
• 1/2 In. MIP excess flow valve (to gas supply) and 1/2 In. MIP steel fitting (to appliance)
• 150,000 BTU max flow capacity. Use with natural or LP (propane) gas
• Temperature rating: 32 to 150 Degrees F. Pressure rating: 1/2 psi maximum
• 100% leak tested. Approved for indoor and outdoor use, temps permitting. CSA certified
